Bill of Materials

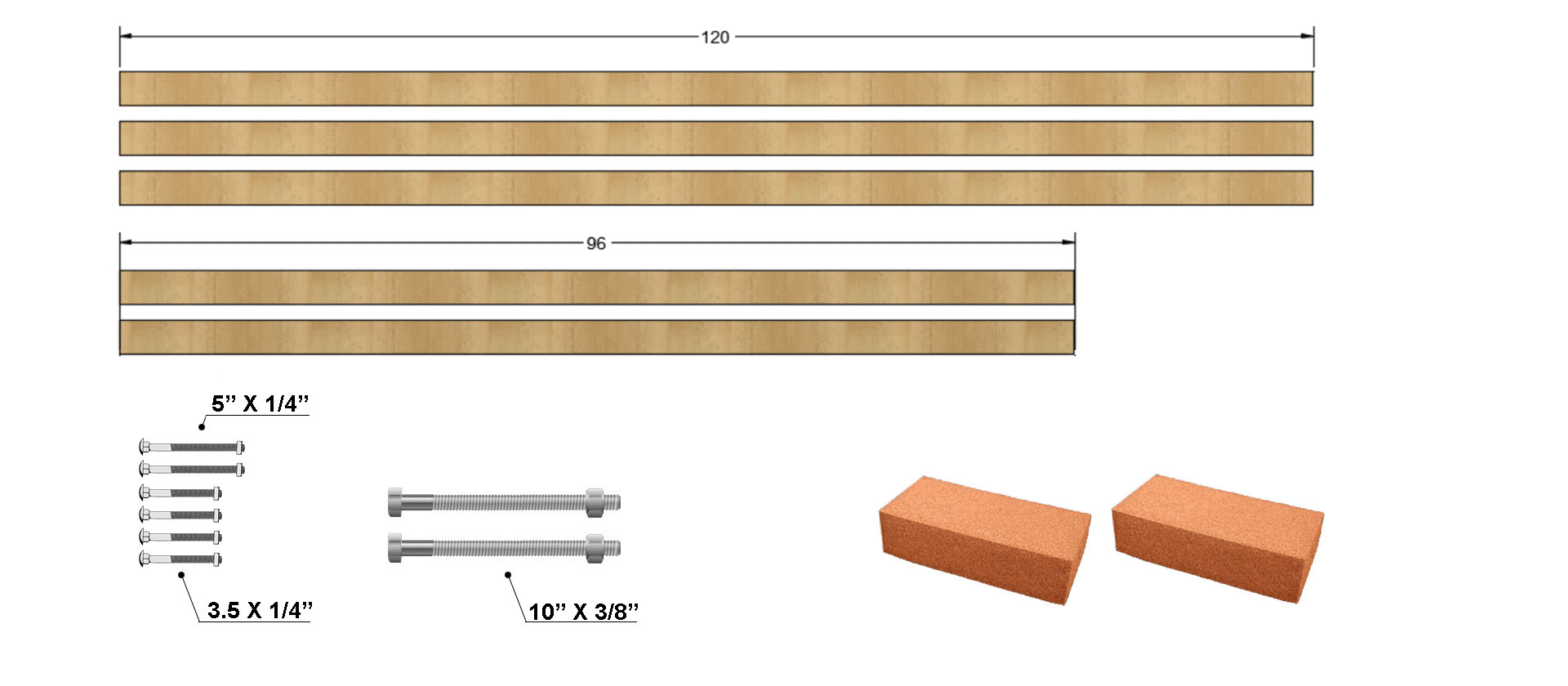

- (3) 2x4s 10 feet long
- (2) 2x4s 8 feet long
- (2) 4' x 8' x 3/4" plywood sheets
- (2) Bricks
- (2) 3/8 in. x 10 in. hex bolts with washers and nuts
- (2) 1/4 in. x 5 in. carriage bolts with washers and nuts
- (4) 1/4 in. x 3.5 in. carriage bolts with washers and nuts
International users. 2x4 (two by four) is a common reference for wooden boards in the US. However, 2x4 is nominal size, the actual measurements are 1.5 in. by 3.5 in.
Cutting and drilling the holes
- Cut (2) 10-feet and (2) 8-feet long boards as illustrated below
- Use 1/4" drill bit for the holes
All measurements are in inches and referenced from the ends of the parts to the center of the hole.
- Take the uncut 10' board and drill two 3/8" holes as illustrated below.
- Drill two more 3/8" holes in the two 79-inch boards (previously cut and drilled) as illustrated below.
Bolt together the legs
- Use (2) 1/4" x 5" carriage bolts for joint C
- Use (4) 1/4" x 3.5" carriage bolts for joint A & B
Final frame assembly
- Bolt the top beam to the legs using two 3/8" x 10" hex bolts.
- Use 4 wood screws to fix the spoil board to the frame.
